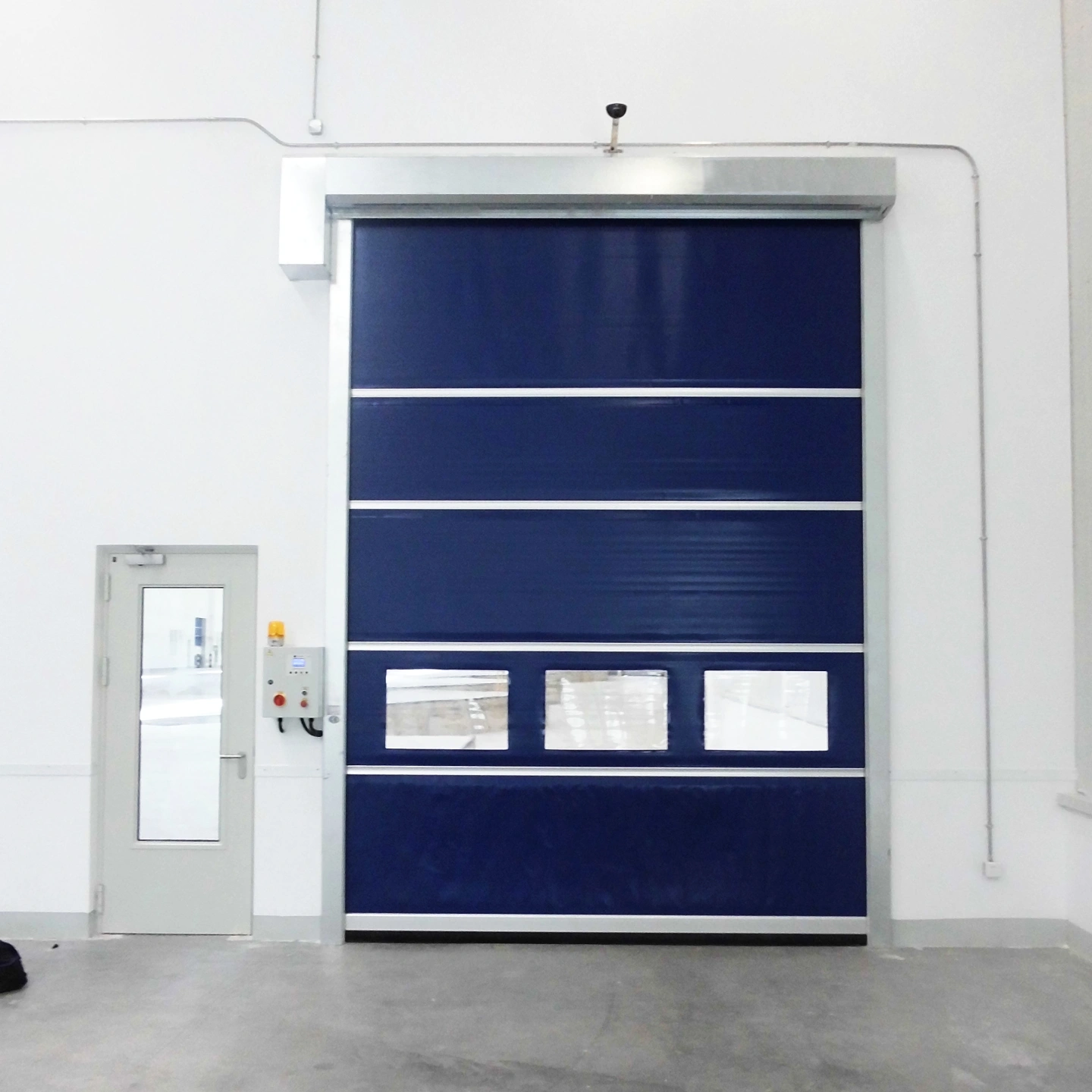

If you need a door that gets on with the job then the ElectroSpeed H2800 is the door for you. This door is robust in design and nature being suited for any application where performance and reliability are paramount.

ElectroSpeed H2800 Features

• Door frame and top cover manufactured in either Galvanised Steel or 304 Stainless Steel

• Door curtain Constructed from 1.2mm thick PVC with ClearVision panel and aluminium windbars

• Plastic molded seal positioned inside the door column to provide a tight seal between the door curtain and the track

• Panel colours available in Blue,Grey,Orange,Yellow or full ClearVision

• Internal or External installation

• Wind loading of up to 28 m/s (will vary with door size)

• 220v direct drive variable frequency motor with electric magnetic brake

• Absolute encoder for precise door position settings

• Intelligent man-machine interface or "HMI" controller with customisable parameters and LED screen with door status indication

• Inter-locking between doors is achievable

• .75kw or 1.5kw Variable frequency drive or "Speed Drive" offering open and close speeds of up to 1.5m per second and 1m per second respectively along with ramp up/ramp down soft start soft stop to prolong door longevity

• Standard inclusion safety features include - Transmitter and Receiver type Photo-Electric "P.E" beams with wireless soft edge presence detection bottom bar and emergency stop button however additional or customised safety devices can be optioned onto the door

• Standard activation include - Wall mounted internal and external push buttons however additional or customised activation products can be optioned onto the door

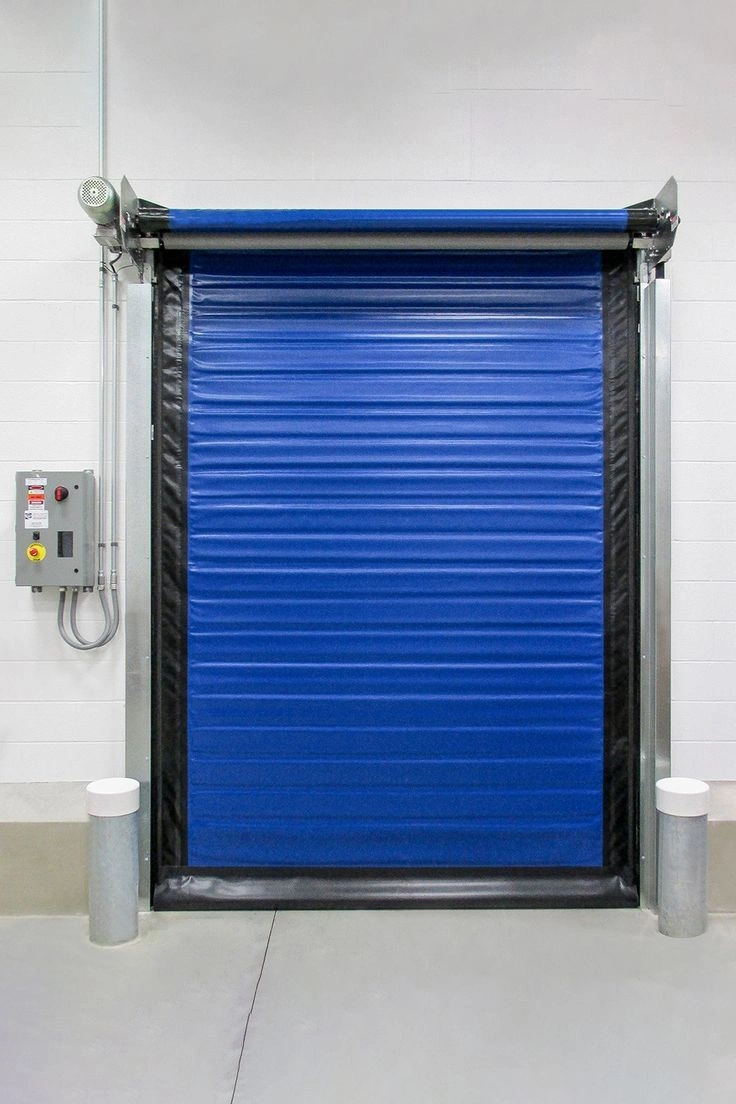

The ElectroSpeed H4000 Polar thrives in cold environments.

A door specifically designed to keep the cold in and the heat out. If keeping your environment cold is the priority then this is the door for you!

ElectroSpeed H4000 Polar Features

• Door frame constructed from 304 Stainless Steel

• 3mm thick door curtain constructed from PVC with internal PU foam insulation

• Heat trace elements and anti-freeze device throughout door frame to prevent freezing of door components

• Operating at temperatures down to -28 degrees celsius

• Wind resistance of up to 8 m/s (varies by door size)

• 220v variable frequency single phase IP64 rated motor with electric magnetic brake

• Standard 240 volt 50hz power supply

• Intelligent man-machine interface or "HMI" controller with customisable parameter settings and LED screen with door status indication

• Inter-locking between doors is achievable

• Variable frequency drive or "Speed Drive" technology allowing door opening speeds of up to 1.5m per second and door closing speeds of up to 1m per second including ramp up/ramp down soft start soft stop to prolong the of the door

• Absolute encoder for precision door positioning

• Photo-Electric beams and emergency stop button as standard safety features. Additional or custom safety features can be optioned onto the door

• Wall-mounted internal and external push buttons are standard activation devices however additional or custom activation products can be optioned onto the door

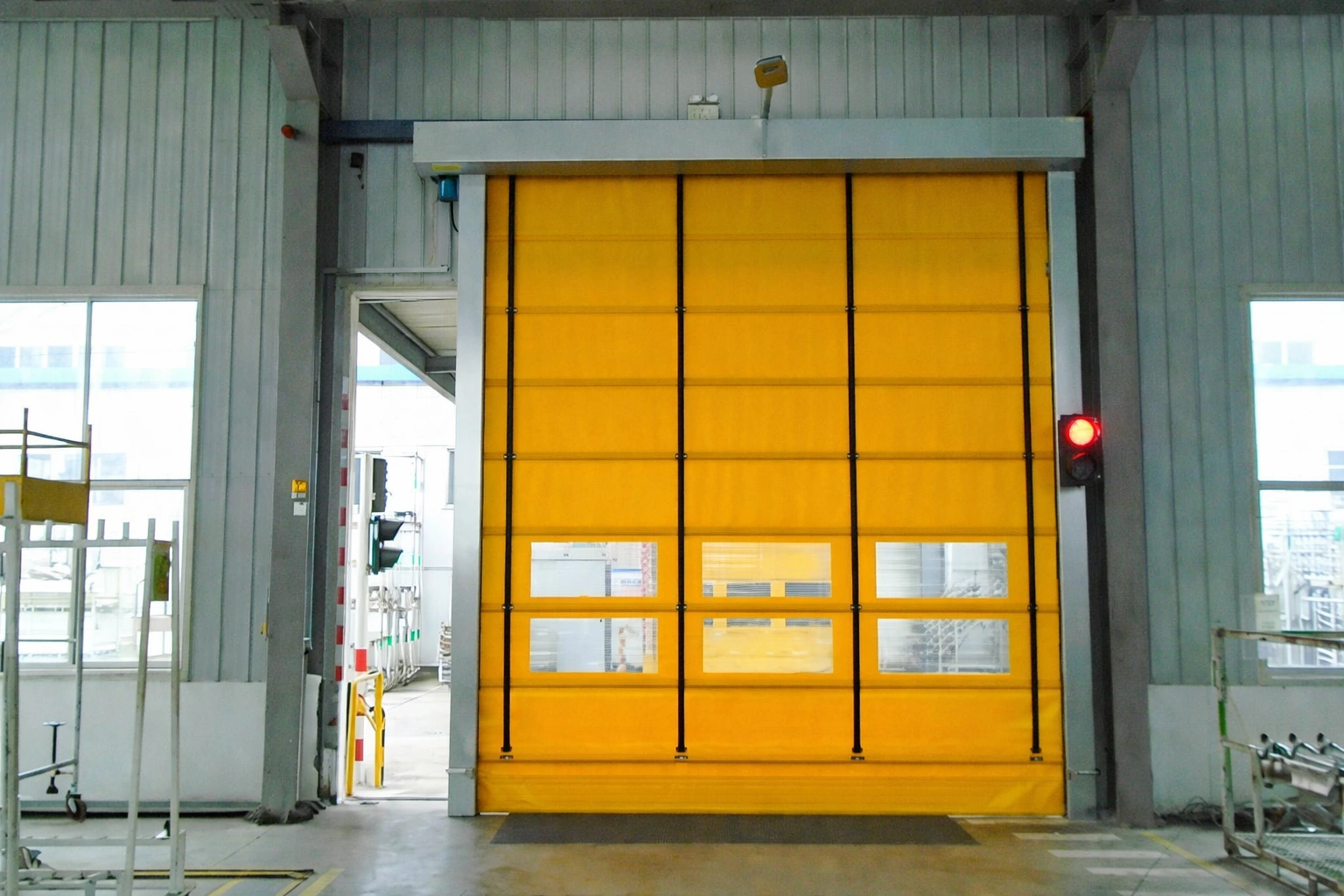

The ElectroSpeed H 5000 is a high speed vertical stacking door suitable for openings that require very large opening widths, heights or both. Hollow steel wind pipes are fitted to the PVC door curtain providing wind protection without adding excess weight.

ElectroSpeed H5000 features

• Robust 2.0mm thick galvanised steel frame design with sealing brushes with 1.5mm thick galvanised steel top cover

• 1.2mm thick PVC curtain with ClearVision transparent PVC windows and anti-wind pipes

• 220v single phase variable speed direct drive motor with electro mechanical brake

• Door open speed up to 1.0m per second and close speed up to 0.8m per second

• Intelligent Man-Machine Interface 'HMI' smart controller with customisable parameters and LED display screen with door status indication

• Variable frequency drive 'Speed Drive' providing ramp up/ramp down soft start soft stop

• Absolute encoder for precise door positioning

• Safety features include Photo-Electric P.E beams and safety emergency E Stop as standard however additional and custom safety products can be optioned onto the door

• Activation is provided by wall mounted internal and external push buttons as standard however additional and custom activation devices can be optioned onto the door

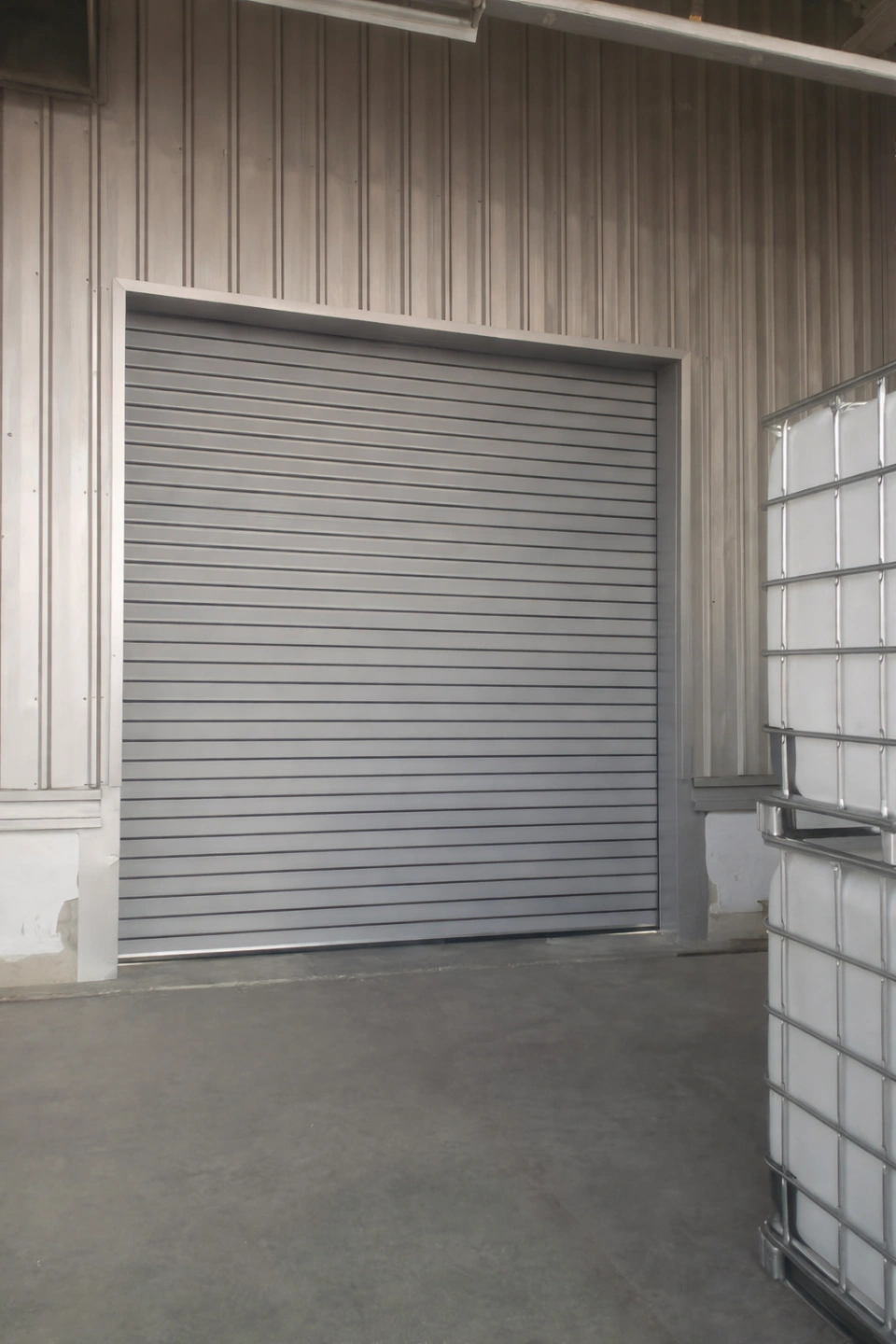

The ElectroSpeed H6000 is a modern European style roller shutter door offering style, speed and security straight out of the box. If you have a car park or a warehouse that needs securing with the convenience of fast open and close speeds and automation then the ElectroSpeed H6000 is the door for you.

ElectroSpeed H6000 Features

• Door curtain constructed from double layer 100mm aluminium slat

• Door frame and cover constructed from heavy duty galvanised steel

• Door slat comes in grey or white as standard with the option to powder coat

• Wind loading of up to 32m/s

• 220v single phase variable frequency motor

• Intelligent man-machine interface 'HMI' control box with LED door status indicator screen

• Variable frequency drive 'Speed Drive' offering ramp up/ramp down soft start soft stop and opening/closing speeds of up to 0.8m per second and 0.5m per second respectively

• Electronic encoder for precise door positioning

• Safety features include emergency stop button and Photo-Electric P.E Beams as standard with the option to add additional safety features

• Activation by push button as standard however additional activation features can be optioned onto the door

The ElectroSpeed H7300 S is the all in one security, high speed door suitable for almost any application. The ElectroSpeed H7300 S combines the security of a steel roller shutter with the functionality of a high speed door meaning you do not need two separate doors to achieve the same purpose. For any application that requires speed and security, the ElectroSpeed H7300 S has you covered!

ElectroSpeed H7300 S Features

• Door curtain constructed from double anodised aluminium, foam filled lath and/or double anodised aluminium lath with clear poly carbonate insert available in various width laths

• Door curtain colour available in anodised aluminium as standard with the option to powdercoat

• Door frame and cover constructed from heavy duty galvanised steel with the option to powder coat

• Wind loading of up to 32m/s

• Spring balanced door curtain by vertical springs hidden in the column

• Door driven by 220v single phase variable frequency motor

• Intelligent Man-Machine Interface 'HMI' control box with LED door status screen and customisable parameters

• Variable frequency drive offering door open/close speeds of up to 1.5m and 1.0m per second respectively as well as ramp up/ramp down soft start and soft stop

• Electronic encoder for precise door positioning

• Standard safety options include integrated light curtain barrier and emergency stop button with the option to include additional safety features

• Activation is by wall mounted push button however additional activation devices and be optioned onto the door

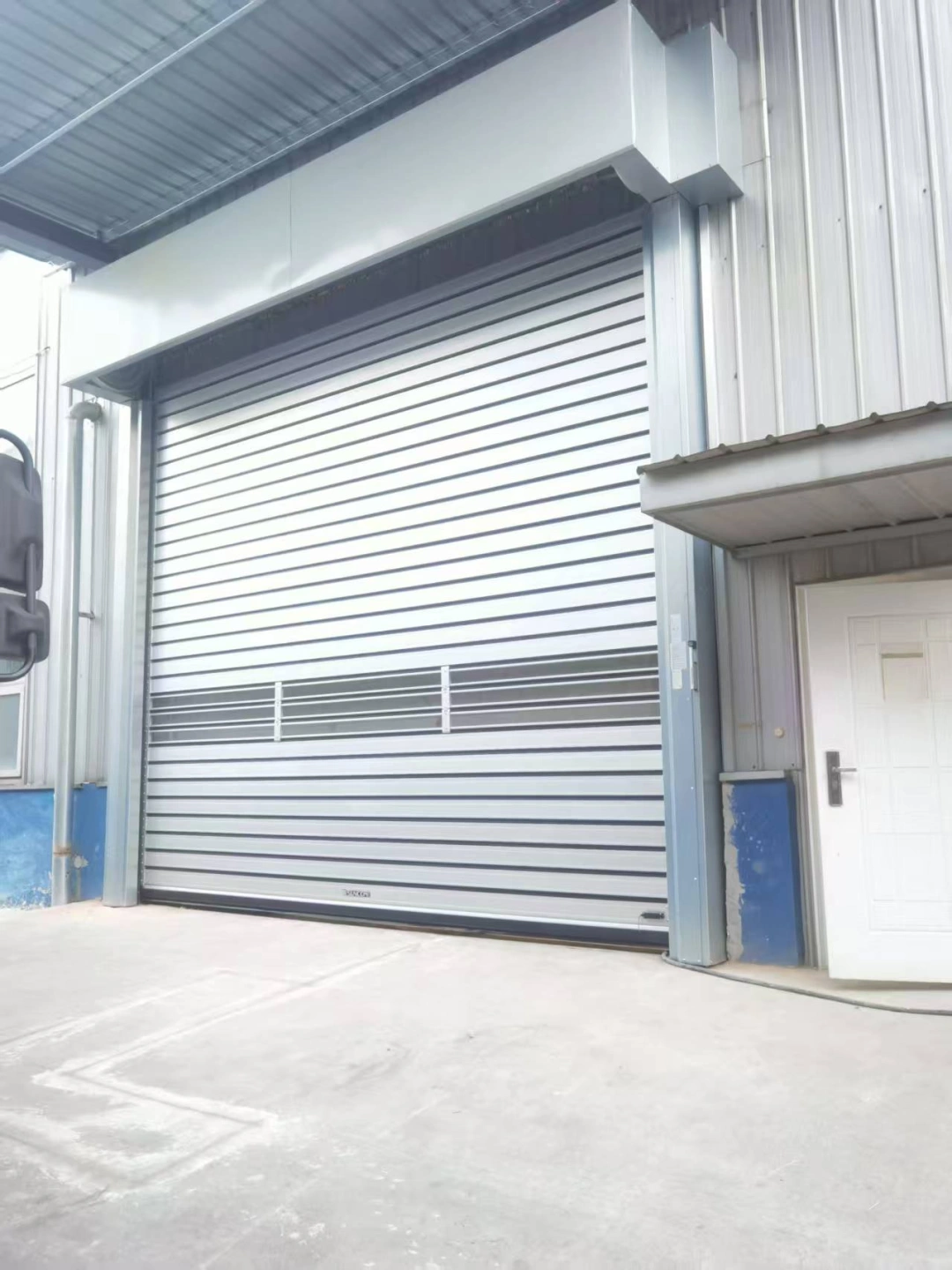

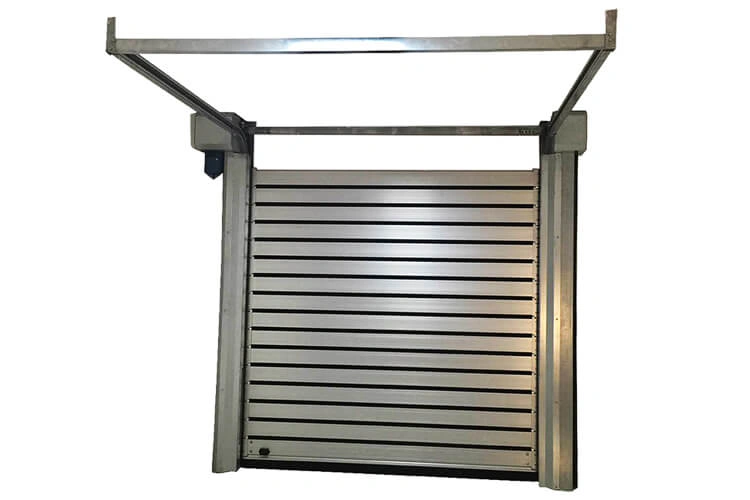

The ElectroSpeed H7300 L (low headroom) is the all in one security, high speed door suitable for almost any application. The ElectroSpeed H7300 L combines the security of a sectional overhead door with the functionality of a high speed door meaning you do not need two separate doors to achieve the same purpose. For any application that requires speed and security, the ElectroSpeed H7300 L has you covered!

ElectroSpeed H7300 L Features

• Door curtain constructed from double anodised aluminium, foam filled lath and/or double anodised aluminium lath with clear poly carbonate insert available in various width laths

• Door curtain colour available in anodised aluminium as standard with the option to powdercoat

• Door frame and cover constructed from heavy duty galvanised steel with the option to powder coat

• Wind loading of up to 32m/s

• Spring balanced door curtain by vertical springs hidden in the column

• Door driven by 220v single phase variable frequency motor

• Intelligent Man-Machine Interface 'HMI' control box with LED door status screen and customisable parameters

• Variable frequency drive offering door open/close speeds of up to 1.5m and 1.0m per second respectively as well as ramp up/ramp down soft start and soft stop

• Electronic encoder for precise door positioning

• Standard safety options include integrated light curtain barrier and emergency stop button with the option to include additional safety features

• Activation is by wall mounted push button however additional activation devices and be optioned onto the door

The ElectroSpeed controller offers a wide variety of inputs, outputs and parameter optimisation. Below is a list of additional, but not limited to, activation and safety devices which can be optioned onto our ElectroSpeed product range.

Safety Devices

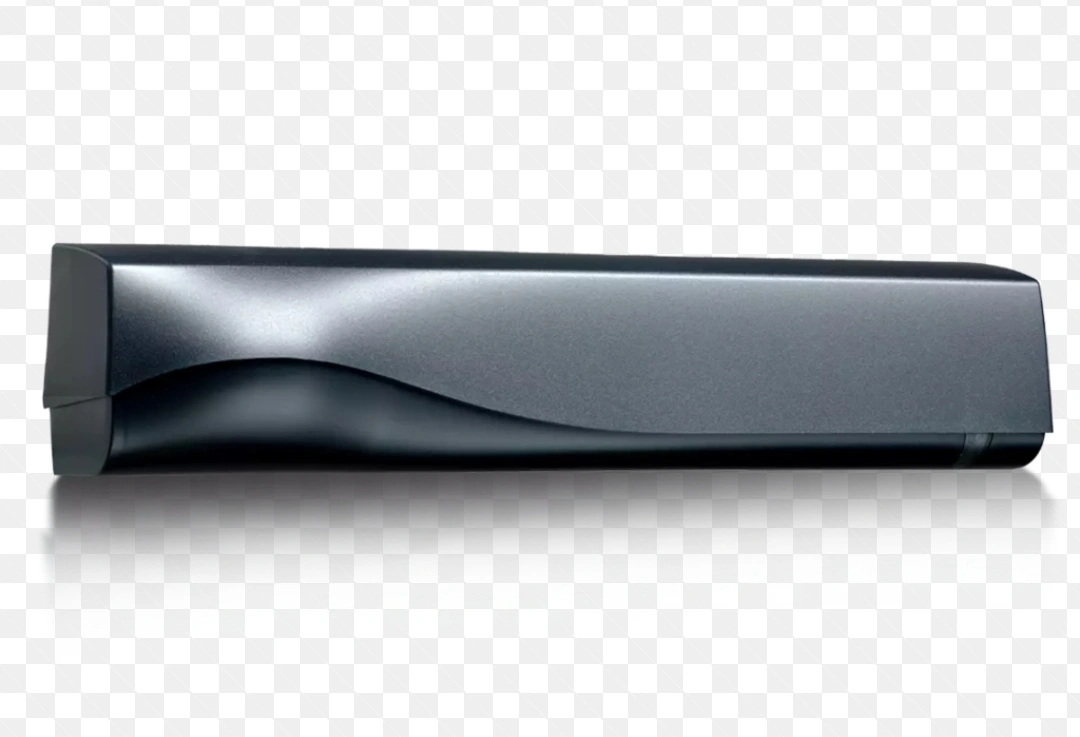

• Infrared overhead presence sensor

• Light Barrier

• additional Photo-Electric Beams

• Additional Emergency Stop Buttons

• Traffic Lights

• Audible Sirens

• Flashing Lights

Activation Devices

• Radar Detection Sensors

• Induction Floor Loop Detectors

• Pull Cords

• Remote Control Transmitter

• Swipe Cards/Card Readers

• Key Switches

• Touch-less Sensors

• Door Interlocking

• Fire Control

If there is something you wish to add to your door not mentioned in the list, please feel free to reach out to us to discuss in detail about your options.

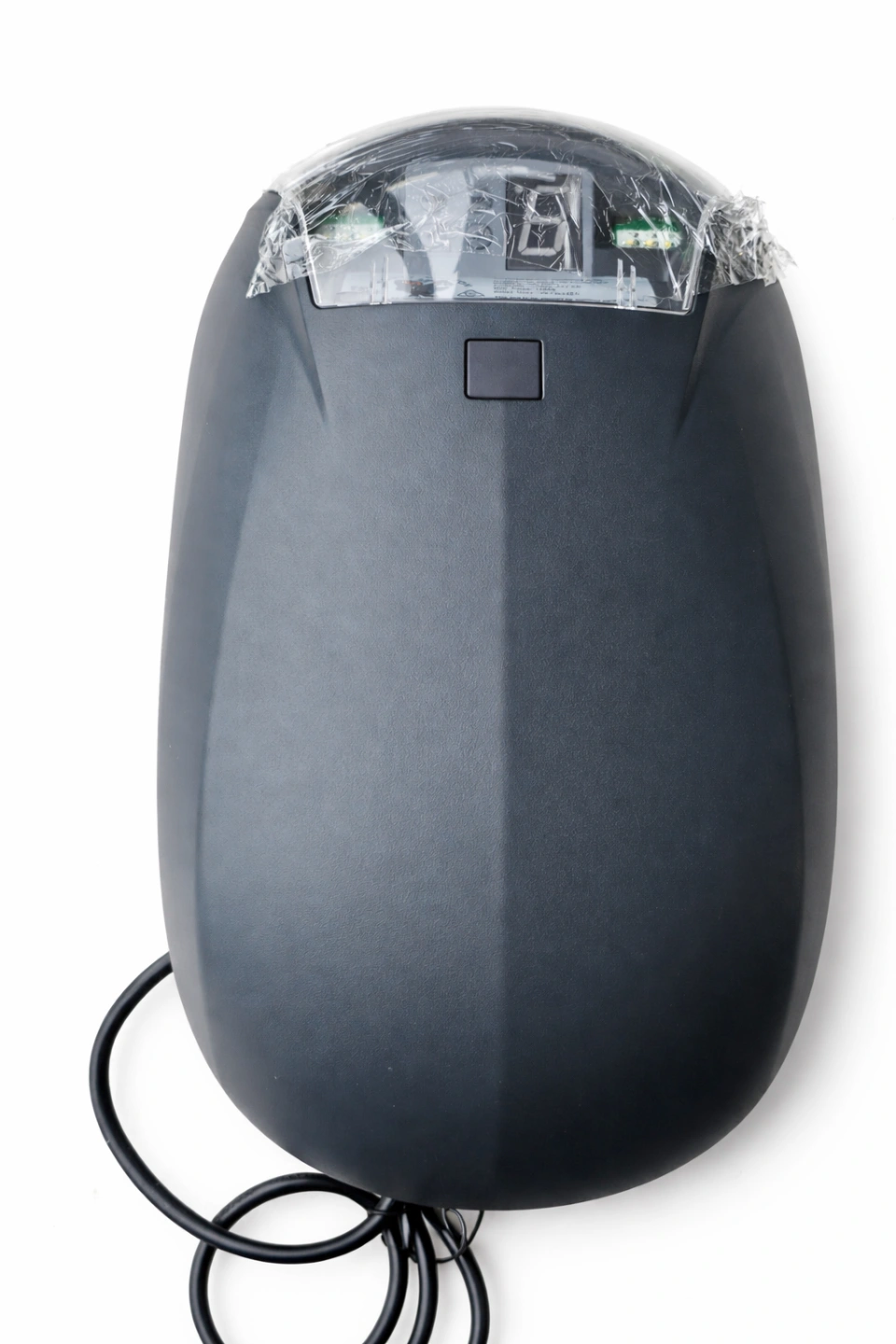

The ElectroDrive R 1200 series of garage door openers offer dependability, durability and safety. When you need a garage door opener to depend on, you can depend on an Electrodor!

ElectroDrive R 1200 features-

• Powerful 1200nm peak operating force

• SmartSense obstruction detection with automatic safety reversal

• Intelligent Micro Controller with door profiling and force overload detection

• Electronic Limits for precise door positioning

• Quiet DC Motor with soft start soft stop

• 433.92 MHz rolling code remote technology

• One piece steel rail and belt drive for strength quiet operation

• Manual release in case of power failure

• 3 remote hand transmitters with key ring and wireless wall button

• Courtesy LED light with auto off timer after 3 mins

• Suitable for sectional overhead and tilt doors up to 20 sqm

  (door must be adequately balanced and operable by hand - maximum 20kg lift force)

• Optional add-ons include WiFi connectivity, Battery Back-up, Photo electric beams (for auto-close function) and Keypad

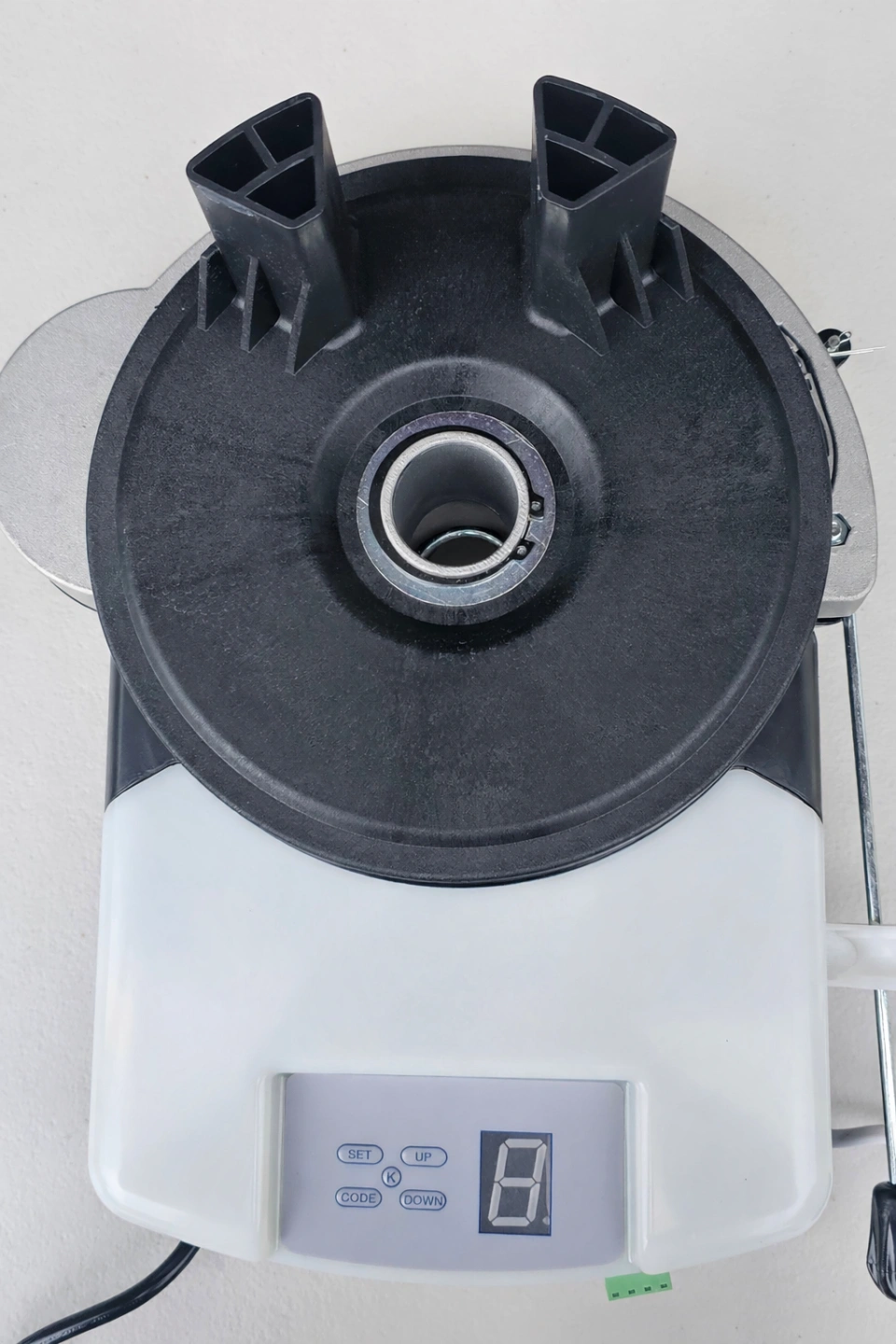

The ElectroDrive R 1000 Garage Roller Door Opener offers sleek, modern styling with safety features you can trust and durability you can depend on. When you need a garage door opener to depend on, you can depend on an electrodor!

ElectroDrive R 1000 features -

• Powerful 1000nm peak operating force

• SmartSense obstruction detection with automatic safety reversal

• Intelligent micro controller with door profiling and force overload detection

• Electronic limits for precise door positioning

• Quiet DC motor with soft start soft stop

• Courtesy LED light with auto off timer

• 433.92 MHz rolling code remote technology

• 3 remote hand transmitters with key ring and wireless wall button

• Manual release in case of power outage

• Suitable for rolling garage doors up to 18 sqm

  (Door must be adequately balanced and operable by hand - Maximum 20kg lift force)

• Optional add-ons include - Battery Back-up, Photo Electric beams (for auto close function) and Keypads

Electrodor offer optional add-ons for the ElectroDrive series of automation products.

Options include -

• Photo Electric Beams

• Keypad

• Key switch

• Battery Back-up
